WAYNE SUBMERSIBLE SUMP PUMP PARTS
If you own a Wayne Sump Pump, you know how long it has run without problems. Eventually the float switch will fail; however that does not mean you should discard the pump. The housing and motor no doubt have years of service left. So why not buy and install a replacement float switch? To help you be prepared for sump pump part failure, we are includiing all of the Wayne sump pump replacement parts here for fast purchasing. Keep a replacement switch on hand just in case your sump pump switch fails during a heavy rainstorm.
Buying and replacing the float top with an entirely new assembly is easy. The replacement parts are available on Amazon (we have the links below for you) and we have included a video to show you how it is done. You do not have to be a plumber to do a switch replacement.
Table Of Contents
Select a specific topic for Wayne Replacement parts if you wish to read about the topic immediately. Otherwise scroll down the page to see all topics.
The two most common parts requiring replacment on a Wayne submersible sump pump are the switch and the float. Wayne Water Systems has made it easy to buy and replace both. Being a plumber is not required to purchase or install the parts
Float Switch Replacement Parts Two Options
The Top Float And Switch Assembly Replacement Kit Part 60017-001 For CDU, SPF and SSPF Models
Part 60017-001 is identified as the Top Float and Switch Replacment Kit. It contains a switch, and the attached power cord which fits between the pump housing and float head.
Wayne recommends the switch be replaced every 2 - 4 years depending on how frequently the pump runs. No sump pump switch lasts forever; therefore it is a great idea to have an extra one on hand so when the switch fails during a heavy rainstorm you are prepared.
The Switch Only Replacement Part 56395 For CDU, SPF and SSPF Models
Part number 56395 replaces the switch only. This takes care of the part Wayne Water Systems recommends be replaced every 2 - 4 years.
3 Switch Replacement Options Comparison
3 Switch Replacement Buying Options Exist. We review the options providing advantages and disadvantages. The conclusion presents the best option and why it is the best option.
Here Are The 3 Options Comparison
Buy Only The Switch and Gasket
PART NUMBER: 56395
For Models CDU, SPT and SSPF
ADVANTAGE: Cost is 75% less than buying the entire Top Cap Assembly
DISADVANTAGE: Installation is not as easy since the switch wires will need to be unattached and the new wires attached
CONCLUSION: Buying Part Number 56395 for $20 at the time of this writing makes sense if you are confident of your DIY pluming skills.
Buy An Electronic Controller Triggered By Motionless Probes
PART NUMBER: HC6000 & HC8000 For Any Model
ADVANTAGE: 1) This option eliminates the need to remove the sump pump from the pit when replacing the switch. 2) The HC6000 and HC8000 switch controller will last many years because it uses a controller receiving signals from probes affected by water pressure. The HC series controller and probes have no moving parts; do not required removal of the pump from the pit to replace the sensors which replace the need for a float and the reliance on the float to complete the cycle so the switch activates the pump. 3) The HC6000 and HC8000 are easy to install. Just tie the Wayne float switch to the 'ON' position. Then install the HC probes to the discharge pipe; plug the HC switch into the wall socket; then plug the Wayne motor cord into the HC piggyback switch. Learn more about the HC6000 and HC8000 Electronic Sump Pump Switches.
DISADVANTAGE: 1) This switch is a new concept, but we installed it in 2011. It is still operating perfectly. We highly recommend it. 2) Costs more than just buying the 56395 replacement switch. 3) The HC6000 and HC8000 are easy to install. Just tie the Wayne float switch to the 'ON' position. Then install the HC probes to the discharge pipe; plug the HC switch into the wall socket; then plug the Wayne motor cord into the HC piggyback switch. Learn more about the HC6000 and HC8000 Electronic Sump Pump Switches.
CONCLUSION: Buying 60017-001 makes sense if you are unsure if you can do the replacement yourself.
Our recommendation is based on your skill, confidence level and time availability.
If you are used to performiing mechanical jobs and like tinkering, we suggest you purchase Part-Number 56395 which includes a new replacement switch and gasket.
If you do not feel mechanical, we recommend you spend the extra money and buy Part-Number 60017-001 which includes the float top case cap, the switch already installed within the case cap, the gasket, attached cord and switch guard and arm assembly.
If you are ready to try new technology, are tired of removing the pump from the pit to replace the switch, and have a low level of mechanical confidence, we recommend the HC6000 or HC8000. Read more about the Electronic Switch HC6000 and HC8000.
16 Installation Steps For Installing Part Number 60017-001 Float Switch Top (Installation is Easy)
1. Unplug the sump pump from the wall socket and remove it from the pit.
2. Loosen the check valve so discharge pipe attached to pump can be disengaged. Be prepared from some water dripping.
3. Allow the metal top of the switch to swing loose from the pump.
4. Remove the float switch top unscrewing the top screws with a screw driver.
5. Move the float switch top from the pump body.
6. Slowly disconnect the 2 black connectors; then disconnect the green connector which is the ground connector. Remember to do the black connectors first..
7. When no more wires are connected take the float top and place it beside the pump.
8. Take the new float top and place it over the pump, connecting the green wire first to the point marked GRD. Push the green connector all the way down.
9. Take the 2 black connectors and connect them pushing them all the way down. Guide the float top down closer to the pump as the black connects are made tightly secure.
10. When guiding the float top in place on top of the pump, align the holes where the screws are refastened.
11. Hand tighten the screws in place making sure top and bottom piece are aligned.. Then do 1/4 quarter turn more to tighten. The tightness keeps moisture out of the pump.
12. Reattach the top metal part of the flost switch to the arm and secure the rubber loop back on the base of the pump.
13. Return the sump pump to the pit.
14. Plug the pump power cord into the wall socket.
15. Test the pump by adding water to the pit which will cause the float to activate the pump.
16. If it works propery you are done.
Watch Installation Of Wayne Float Switch Top Part No 60017-001
Watching someone perform a float switch replacement is an easy way to gain confidence and know how so that you will be able to replace your own switch.
Learn how to replace the Wayne Top Float Switch.
Other Float Switch Related Parts
Float Kit For Submersible Sump Pumps
Replacement Float Kit Part-Number 60038-001 for CDU, SPF models includes the Float, Rod and Rubber Loop.

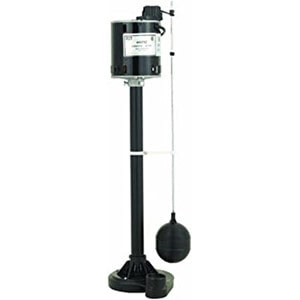

Float Switch Kit For Pedestal Sump Pump
Replacement Switch Part-Number 56396 for Pedestal Sump Pump SPV500s.
Other Available Parts
Impeller For Submersible
The Replacement Impeller Part-Number 60031-WYN1 and 23128 is for CDU, SPT, SPF, SSPF, SSPT models.
Impeller For Pedestal
Replacement Part-Number 56392 is for the Pedestal SPV model.
Why Save The Pump and Replace A Part?
Wayne motors and housing will last longer than the switch. Discarding the housing with motor is not environmentally friendly. Besides parts are easy to install and cost far less than buying a new one.
SHOP WAYNE SUMP PUMP FLOAT SWITCH REPLACEMENT PARTS
