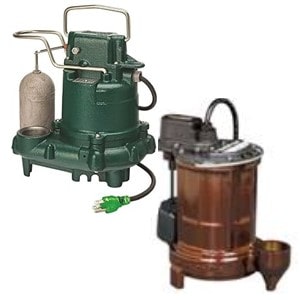

Submersible Sump Pump Zoeller vs Liberty: Which Is Better?

Click the Table Of Contents button to Hide it. Click it again to see it.

Submersible sump pump design differences appear in material differences and engineering choices.

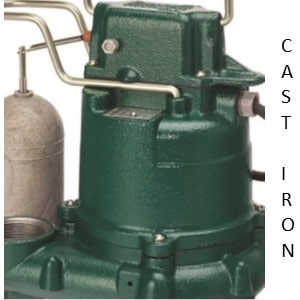

Submersible sump pump housing makes a difference. The housing material keeps the motor cool by dissipating heat. There is a big difference between cast iron, aluminum and thermoplastic housing construction. Cast iron is best, stainless steel is second best; aluminum and zinc are next best. Thermoplastic traps heat.

Thermoplastic is an economical option for light-duty or occasional use, but it doesn't handle heat well. Extended or intense pumping can lead to overheating, warping, or even cracking over time.

Both Brands use stainless steel for all fasteners, screws, bolts and fasteners. Stainless steel does not rust which makes it easier during maintenance to remove the pump housing. The handle is sturdy enough on both brands to lift the heavy cast iron pumps which weigh s 23 to 38 pounds depending upon horse power size.

Zoeller and Liberty Pumps sump pump warranty is a guarantee provided by them which covers repair or replacement of the pump if it fails within their specified period after purchase. It gives peace of mind, ensuring that if something goes wrong with your sump pump, such as a mechanical failure or defect, you won't have to pay out of pocket for repairs or a replacement, within the terms of the warranty.

Failure at the time of install is highly unlikely with both of these brands because they test each pump before it leaves the factory. These days the majority of pump manufacturers do not test each pump.

Once a new pump is installed makes sure the receipt is kept for the duration of the warranty.

Models By Warranty Period

Liberty Pumps submersible sump pumps guarantee a 3 year warranty for Series230, 240, 250, 279, 280 , 290, 450 and S37.

Zoeller submersible sump pumps guarantees range from 2 years to 5 years.

Reliability, safety, and performance are at the core of Zoeller and Liberty Pump submersible sump pumps. Designed for both continuous and intermittent use, these pumps excel in efficiency, and are meant to be submerged. Their performance is ensured by robust horsepower ratings, dependable float switches, and consistent pumping power. Safety is a top priority, with both brands using sealed electrical and motor components to protect against water damage. In every aspect, Zoeller and Liberty Pumps deliver reliable, safe, and high-performing solutions for water removal.

Motor cooling is a key factor in sump pump performance. Since motors generate heat during operation, an effective cooling method is essential for efficiency, reliability, and longevity.

Both Zoeller and Liberty Pumps use a vortex-style impeller. This design allows small solids to pass through without getting caught, keeping your sump pump running smoothly and reducing the risk of blockages or pump failure.

Installing a submersible sump pump with a vortex impeller is a smart, low-maintenance solution for reliable performance..

Zoeller and Liberty Pumps submersible sump pumps include thermal overload protection because motors can be overheated during heavy continuous pumping and cause a safety risk. To prevent the motor for burning up, a thermal overload switch is built into the motor. The switch automatically shuts off the pump if the motor overheats, and it resets automatically once the motor cools down.

Power cord length is important because an extension cord should not be used with a sump pump. Likewise voltage is important because it is the driving force that pushes electrical charge through a circuit safely, and efficiently,.

Zoeller sump pump power cords vary in length by model.M53, M98 power cords are 9 foot; M63 and M137 cords are 10 feet; and M95 cord is 15 feet. Cord lengths of 15, 35 and 50 feet are available by contacting Zoeller.

The standard length for Liberty Pumps sump pump power cords standard length is 10 feet. Additional lengths are available per model variation. -1 is the standard 10 feet. -2 is 25 feet, -3 is 35 feet and -5 is 50 feet.(i.e. 283-1 is 10 feet; model 283-2 is 25 feet; model 283-3 is 35 feet and model 283-5 is 50 feet).

Both brands are the standard 115V; however 230 V can be special ordered.

Both Zoeller and Liberty Pumps offer manual and automatic sump pumps.

Manual sump pumps require user supervision or an external controller to operate them. Unlike automatic pumps, which have a float switch that monitors water levels and automatically turns the pump on or off, manual pumps rely entirely on the operator's judgment to know when to start or stop pumping.

Who Are Manual Pumps For?

Manual sump pumps are ideal for those who prefer to have full control over when the pump operates. Whether it's choosing their own controller or simply plugging the pump in whenever they decide, manual pumps offer a more hands-on approach to managing water levels. Electronic switch controllers are becoming very popular.

Automatic sump pumps are designed to operate on their own. They are designed to turn on and off by themselves without needing manual intervention. They come equipped with an integrated float switch, which works in tandem with the pump's motor to detect rising water levels. When the water level reaches a certain height, the float switch is lifted, activating the pump without any need for human intervention. The most common types of float switches are tethered, vertical magnetic, and vertical 2-pole snap action.

Who Are Automated Sump Pumps For?

Automated sump pumps are perfect for homeowners who want reliable, hands-off protection. They're ideal for people who may not be home during a storm or who don't want to constantly monitor their sump pump system. Whether you're out of town or just want peace of mind while you sleep, automated pumps ensure your basement or crawl space stays dry without you lifting a finger. It's the perfect solution for those who value convenience and consistent, worry-free operation.

Automated Submersible Sump Pump Models are presented by float switch type below: Tether, Vertical Magnetic and Vertical 2-Pole Snap Action.

Both Zoeller and Liberty Pumps use a similar tether switch design. This switch looks like a cord with a float at the end. Inside that float is a small magnet and a reed switch.

As the water level in the pit rises, the float lifts. This movement brings the magnet closer to the reed switch. When the float reaches a specific height, the magnetic field activates the switch, closing the electrical circuit and turning the pump on. As the pit water drains and the float lowers, the magnet moves away, the circuit opens, and the pump shuts off.

It is a simple and effective design type. It has many advantages.

Who Is the Tether Float Switch For?

The tether float switch is perfect for homeowners with a larger sump pit (at least 18 inches in diameter) who want customizable control over the pump's activation height. It's also ideal for those who don't have debris-filled pits that could get tangled with the float, and for people who need a pump that can move more water per cycle - generally 8 gallons or more. If you're looking for better efficiency and the ability to fine-tune your system, the tether float switch might be the perfect fit.

Tether Float Switch Models By Brand

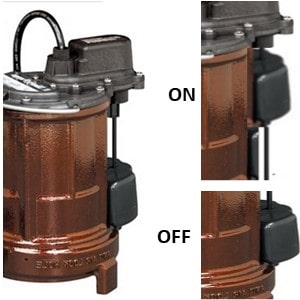

The vertical magnetic float switch is like the tether float switch because both use a magnetic field and a reed switch. The basic difference is that the movement of the VMF float is controlled and the reed switch is located above the float in the switch head. The buoyant float can only move up and down as the pit water level changes because it is slides up and down a vertical metal rod.

As the float rises with the change of water level in the pit, the magnetic field inside the float comes closer to the electrical reed switch in the switch head. When the draw of the magnetic field is great enough it closes the electrical reed circuit which sends power to the pump. As the water lowers the float lowers and the magnetic field moves away, the reed switch opens and the electrical current stops flowing to the pump.

It is an effective float switch with some advantages.

Who Is the Vertical Magnetic Float Switch For?

The vertical magnetic float switch is ideal for homeowners with narrow sump pits (at least 11 inches in diameter) and minimal calcium buildup in their water. If your pit has hard water with calcium deposits, you'll need to clean the float and rod periodically to keep it running smoothly. This switch is perfect for those who want to adjust the pump off height (but not the on height), which means the system will remove 4 to 5 gallons of water per cycle - a good choice for those who don't need to pump large volumes of water per cycle.

Vertical Magnetic Float Switch Models By Brand

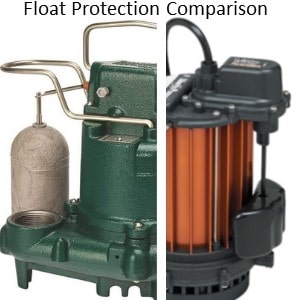

Unlike many vertical float switches that slide up and down a pole, Zoeller's design is a bit different. Their vertical float is securely attached at the bottom to a bracket on the pump base, and at the top to a switch arm. As water in the sump pit rises, the float lifts the arm. Once it reaches a certain height, it triggers the internal snap-action switch.

This snap action creates a quick and decisive on signal, powering the pump. As the water level falls, the float drops, the arm lowers, and the switch turns the pump off. Zoeller uses a 2-pole switch, meaning it controls both the power supply and motor activation, improving reliability.

Zoeller takes the 2-pole snap action float switch a step further by adding additional mechanics inside the switch head to decrease the two current wires friction wear at the point of snap action. This enhancement increases the switch life to 3 times that of the original 2-pole-snap action float switch. The enhancement gives these upgraded models, M63 and M95 a 5 year warranty as opposed to a 3 year warranty and increases the test cycle results from 1 million to 3 million test cycles before needing replacement.

Who Is the Vertical 2-Pole Snap Action Float Switch For?

The Vertical 2-Pole Snap Action Float Switch is perfect for homeowners with 12-inch or wider pits who deal with calcium buildup in their water. This float switch is ideal for those who want a maintenance-free option since there's no float rod to worry about cleaning - no hassle, no buildup.

It' i also a great choice if you do not need to adjust the pumps on/off height. With this switch, the system removes about 4 to 5 gallons of water per cycle which makes it an excellent option for those who do not need to pump large volumes of water at once.

What sets this switch apart? It provides robust protection against pit hang-ups, ensuring reliable operation. Plus, it's built to last, with a tested 1 million pump cycle lifespan, which can last 4 to 7 years depending on use.

For even more reliability, the enhanced 2-pole version of this switch is designed to last 3 million cycles, providing three times longer reliability for those who need it.

Vertical 2-Pole Snap Action Float Switch Models By Brand
